Puff silicone XG-866ARP is a special-effect silicone printing ink developed for textile screen printing applications. It is designed to create a soft 3D raised effect on garments, allowing brands and manufacturers to achieve unique visual depth, premium texture, and enhanced product recognition.
Unlike traditional flat screen printing, puff silicone printing creates a three-dimensional surface by expanding during the curing process. This raised structure gives printed designs a stronger visual impact and a noticeable tactile experience.
Why Puff Silicone Is Becoming Popular in Fashion Apparel
Today's fashion industry is no longer focused only on colors and patterns. Consumers increasingly expect garments to provide unique visual experiences and premium details.
Traditional printing methods usually create a flat surface, while puff silicone printing creates a raised structure that changes how consumers see and feel the design.
The 3D effect provides:
● More noticeable logos
● Stronger design depth
● Unique shadow effects
● Enhanced brand recognition
For fashion brands, this means a simple logo or graphic can become a key design element.
A raised silicone print can transform ordinary apparel into a premium product by adding texture and dimension that customers can immediately notice.
Product Features of Puff Silicone XG-866ARP
1. High-Performance 3D Puff Effect
The main advantage of XG-866ARP puff silicone is its ability to create a stable raised structure after curing.
Compared with ordinary silicone ink, puff silicone is specially formulated to provide additional height and surface texture.
Key benefits:
√ Clear 3D appearance
√ Uniform puff effect
√ Strong design visibility
√ Premium surface finish
This makes it suitable for applications where visual differentiation is important. Professional puff silicone systems are designed to balance expansion performance with silicone flexibility, allowing manufacturers to achieve both appearance and wearing comfort.
2. Soft Touch and Flexible Silicone Performance
A major advantage of silicone printing materials is their comfortable hand feel.
Although puff silicone creates a raised structure, the final print should remain soft and flexible.
XG-866ARP provides advantages such as:
Soft surface touch
Flexible print layer
Comfortable wearing experience
Reduced risk of rigid printing feeling
This makes it suitable for garments that require movement and comfort.
Standard Factory Mixing Ratio (Mass Production Formula)
The fixed industrial formula for stable soft 3D puff effects: 100% XG-866ARP Puff Silicone Base + 10% XG-866B-2 Soft Touch Additive (by total weight). This ratio is the most balanced solution for foaming height, softness, adhesion, and wash fastness.
Formula Adjustment Rules for Customization:
Ultra-soft prints: Adjust XG-866B-2 dosage up to a maximum of 12% (do not exceed to avoid reduced puff height and fastness)
High-rigid clear embossing: Reduce XG-866B-2 dosage to 7%–8% for higher pattern stereoscopic stability
Optional addition: 0–10% silicone color pigment for color customization, 0–15% professional silicone thinner for viscosity adjustment
Verified Industrial Performance Metrics
♦ Wash Fastness: Passes 50-cycle AATCC 61 standard washing test; no puff collapse, peeling, fading or edge warping after long-term repeated washing
♦ Stretch Elasticity: Cured puff layer achieves 320% tensile recovery, stretches synchronously with cotton, polyester and spandex blended fabrics without cracking or breaking
♦ Puff Stability: Uniform foaming expansion rate; controllable 0.3–1.2mm raised height via adjusting printing thickness and mesh count, ensuring consistent batch production effects
♦ Surface Durability: Level 4 friction and scratch resistance, resisting daily wear and rubbing during garment wearing and cleaning
♦ Eco Compliance: Zero phthalates, zero heavy metals, low VOC (≤13g/L); fully certified by REACH, RoHS and OEKO-TEX Standard 100 Class 1, suitable for export and children's clothing production

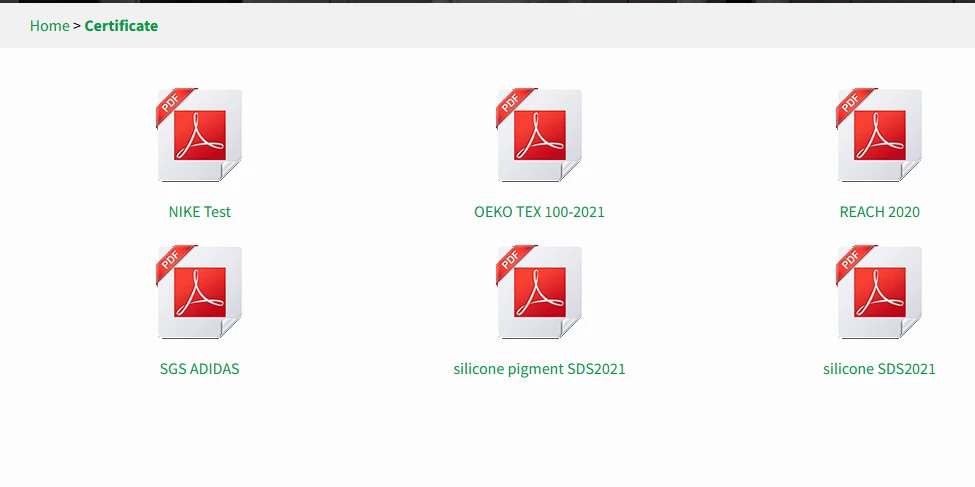

Below are the relevant certificates for our products; for details, please click "About us" → "Certificate" on the webpage.
Puff Silicone vs Traditional Silicone Printing
| Feature | Puff Silicone XG-866ARP | Traditional Silicone Ink |
|---|---|---|
| Surface effect | 3D raised texture | Flat silicone layer |
| Visual impact | High dimensional effect | Standard appearance |
| Touch experience | Soft and textured | Smooth surface |
| Fashion value | Premium special effect | Basic decoration |
| Application | Fashion, sportswear, special designs | General silicone printing |
Traditional silicone ink remains suitable for standard printing applications.
However, when brands require stronger visual impact and premium product differentiation, puff silicone provides additional design advantages.
Conclusion
Puff Silicone XG-866ARP provides textile manufacturers with an innovative solution for creating 3D raised silicone printing effects.
By combining:
Strong visual impact
Soft silicone touch
Flexible performance
Durable printing quality
XG-866ARP helps fashion brands and garment manufacturers create products with higher perceived value.
For companies looking for a professional puff silicone manufacturer and silicone ink supplier, YRsilicone provides customized silicone printing solutions to support modern textile production.
